C-Series – type filters stages wise construction reduced maintenance and increases efficiency
. The

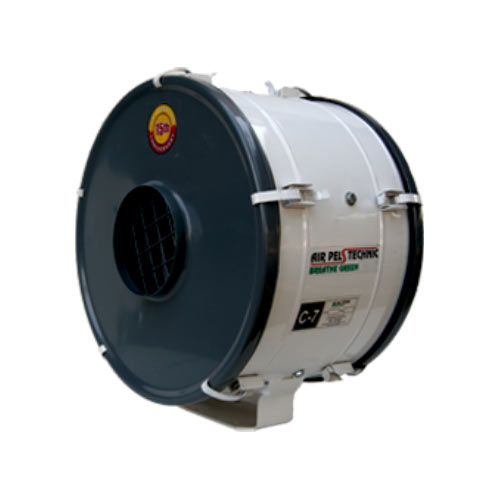

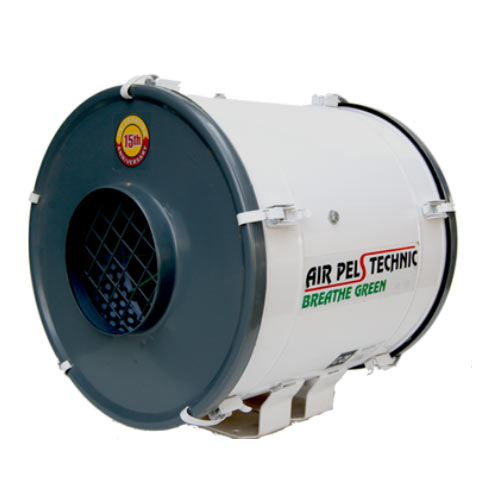

AIR PEL C – Series includes five oil mist collector units with airflow ranging from 420 m3/hr to 2100
m3/hr.
are designed for small to medium sized machines and has an airflow of 425 m3/hr
are designed for medium sized machines and has an airflow of 900 m3/hr and 1260 m3/hr
are designed for small to larged sized machines and has an airflow of 1740 m3/hr and 2100 m3/hr
| MODEL | AIR FLOW (m³/hr) | Motor (kW) | Dimension (Diameter × Height) | Intake Dia (mm) | Weight (Kg) | Noise (dBA) |
|---|---|---|---|---|---|---|
| C-7 | 425 | 0.55 | 450 mm × 300 mm | 158 | 22 | 62 |
| C-15 | 900 | 0.55 | 450 mm × 400 mm | 158 | 28 | 65 |
| C-21 | 1260 | 0.74 | 450 mm × 400 mm | 158 | 28 | 65 |
| C-29 | 1740 | 1.1 | 450 mm × 500 mm | 200 | 32 | 68 |
| C-35 | 2100 | 1.1 | 450 mm × 500 mm | 200 | 32 | 68 |
