Fume Extraction System Manufacturers in India | Industrial Fume Extraction Solutions

Fume Extraction System in India | AIR PEL TECHNIC
whatsapp-now
enquire-now

AIR PEL TECHNIC is one of the prominent fume extraction system manufacturers in India, suppliers, service providers in India, we specialize in high-order-filtrations in industrial settings, Our technology results in the effective purification of the air in workshops by removing dangerous solid particle to PM 50 and PM 0.5, and so the proposed solutions are reliable and affordable to manufacturers.

Advanced Fume Extraction System Manufacturers

AIR PEL TECHNIC offers top-grade fume extraction system, Specializes in various fume extraction systems, including those for welding, soldering, are carefully designed to filter and absorb the toxic fumes, dust and gases at their point of origin and protect the welfare of your workforce besides maintaining the health of your activities.

Types of Fume Extraction System

  • Portable Fume Extractor: These are mobile and can be moved very easily to the place of pollution because they are wheeled down and can be made flexible with the help of arms. They suit both workshops or places where the position of the work shifts too much proving to be effective and local fume capture.
Technical Data Range / Typical Value
Airflow Rate 300 to 1,200 m³/h (175 to 700 CFM)
Filtration Efficiency 99.5% to 99.99%
Power 0.35 kW to 3 kW (1/2 to 4 HP)
Noise Level Typically, 55 dB to 77 dB
Filter Stages Multi-stage, including pre-filter, main filter (e.g., HEPA), and often an activated carbon filter
Body Material Mild Steel

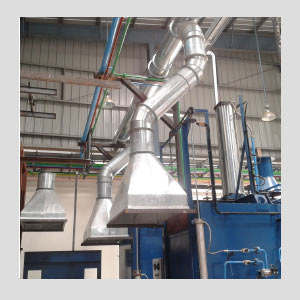

  • Stationary/Wall-mounted Systems. : Mild Steel Fume Extraction System occupy valuable floor space and are attached to a central ducting system which makes this a long-term, effective solution to regular air purification.
Technical Data Range / Typical Value
Airflow Rate 1,000 to 2,000 m³/h (600 to 1,200 CFM)
Power 1.1 kW to 2.2 kW (1.5 to 3 HP)
Filter Type Cartridge filters with mechanical or pulse-jet cleaning
Arm Length 2 m to 4 m (7 ft to 14 ft)
Filtration Efficiency >99%
  • Fume extractor 3D Printing: Such extractors are designed to be able to trap and filter fine particulate matter and Volatile Organic Compounds (VOCs) that are emitted as the result of 3D-printing.
Technical Data Range / Typical Value
Airflow Rate 10 to 330 m³/h (6 to 195 CFM)
Filtration Efficiency >99.95% (on 0.3 µm particles with HEPA H14 filter)
Noise Level <60 dB
Filter Stages Pre-filter, HEPA filter, and activated carbon filter
Power Typically <250 W
  • • Mild Steel Fume Extraction System: This is a ventilation apparatus that collects and recovers fumes, smoke and dusts produced in processing of mild steel. It gives a safe working atmosphere as it eliminates dangers by air particles as they appear.
Technical Data Range / Typical Value
Construction Material Mild Steel (primary material for the casing and frame)
Airflow Rate Highly variable, from 300 m³/hr to over 7,000 m³/hr
Efficiency >99% (depends on the filter system, not the body material)
Power Varies widely, from <1 kW to multiple kW

Features of Fume Extraction System:

  • Enhanced safety and health of the worker: This will improve the health status of the worker as the fume extraction systems will eliminate harmful particles and gases minimizing the risk of respiratory diseases, skin diseases and other health conditions caused by prolonged exposure to hazardous fumes and gases.
  • Regulations: Regulations may also be covered in order to ensure health and safety in businesses are met. Regulations can be implemented through implementation of a good quality fume extraction system to meet the stricter national and local regulations, like OSHA. This saves the firm a lot of fines and legal accountability; and it proves commitment to the welfare of the employees.
  • Improved productivity: A clean and safe environment is much more motivational to the employees and increases concentration on work, resulting in productivity and a more motivated team. When employees do not need to concern themselves about the air they are inhaling, Fume Exhausters get concentrated fully on what they are doing.
  • Equipment Protection: Cleaner environment- there will be minimal damage attributed to a build-up of particulate material hence reduced maintenance and downtime of the operations.
  • Environmental Responsibility: fume extraction system service providers in India not only safeguards the community in the area but also helps companies to live up to their corporate environmental-responsible actions and their corporate contribution to a more sustainable form of the future.

Applications of Fume Extraction System:

  • Welding and Metal Fabrication: This is one of the most common applications, as welding processes generate a variety of hazardous metal fumes and gases. Fume extraction systems are essential for capturing these pollutants directly at the source, protecting welders and other workers.
  • Electronics and Soldering: In the electronics industry, soldering and other assembly processes release fine particulate matter and toxic fumes. Fume extractors with multi-stage filtration, including HEPA and activated carbon filters, are used to ensure the air is clean and safe for technicians.
  • Laboratories and Chemical Processing: Laboratories often handle volatile chemicals and hazardous substances that produce dangerous vapors. Soldering Fume Absorber, such as fume hoods, are critical for containing these fumes and protecting scientists and lab personnel from exposure.
  • Laser Cutting and Engraving: The process of laser cutting and engraving on various materials releases smoke, dust, and toxic fumes. Fume extractors are used to capture these particles, protecting both the operator and the laser equipment while preventing contamination of the finished product.

AIR PEL TECHNIC is the well-established fume extraction system manufacturers in India, suppliers, service providers in India, are an indispensable part of modern industry, providing a vital layer of protection for both people and equipment. By effectively removing harmful airborne contaminants, Laboratory Fume Extractor systems ensure a safe and compliant workplace, boost productivity, and demonstrate a commitment to environmental stewardship. Contact us for more details.

FAQs:

A mounted fume extractor is a stationary device that helps to remove fumes and other hazardous airborne particles from an environment. They can be mounted to the floor, a wall, or any elevated surface.

It is designed to effectively capture and remove airborne contaminants like welding fumes, dust from grinding, and other hazardous particles.
